ISO A1 CAD Sheet Package

FEATURES

• Margins and title block height are based on the requirements set forth in the National Building Code of the Philippines
• With the exemption of the sheet with a horizontal title block, the other sheet with a vertical title block or is in portrait, is NOT A STANDARD FORMAT per the National Building Code of the Philippines. Use at your own discretion
• All texts are editable
• FileName Field is included in the drawing. This will help in tracing back the printed file in the computer. Command “laythw” to reveal the field
• Plot style (.ctb) file is included. Learn how to add it to your CAD software here.

AVAILABLE DESIGN

• Landscape, horizontal title block

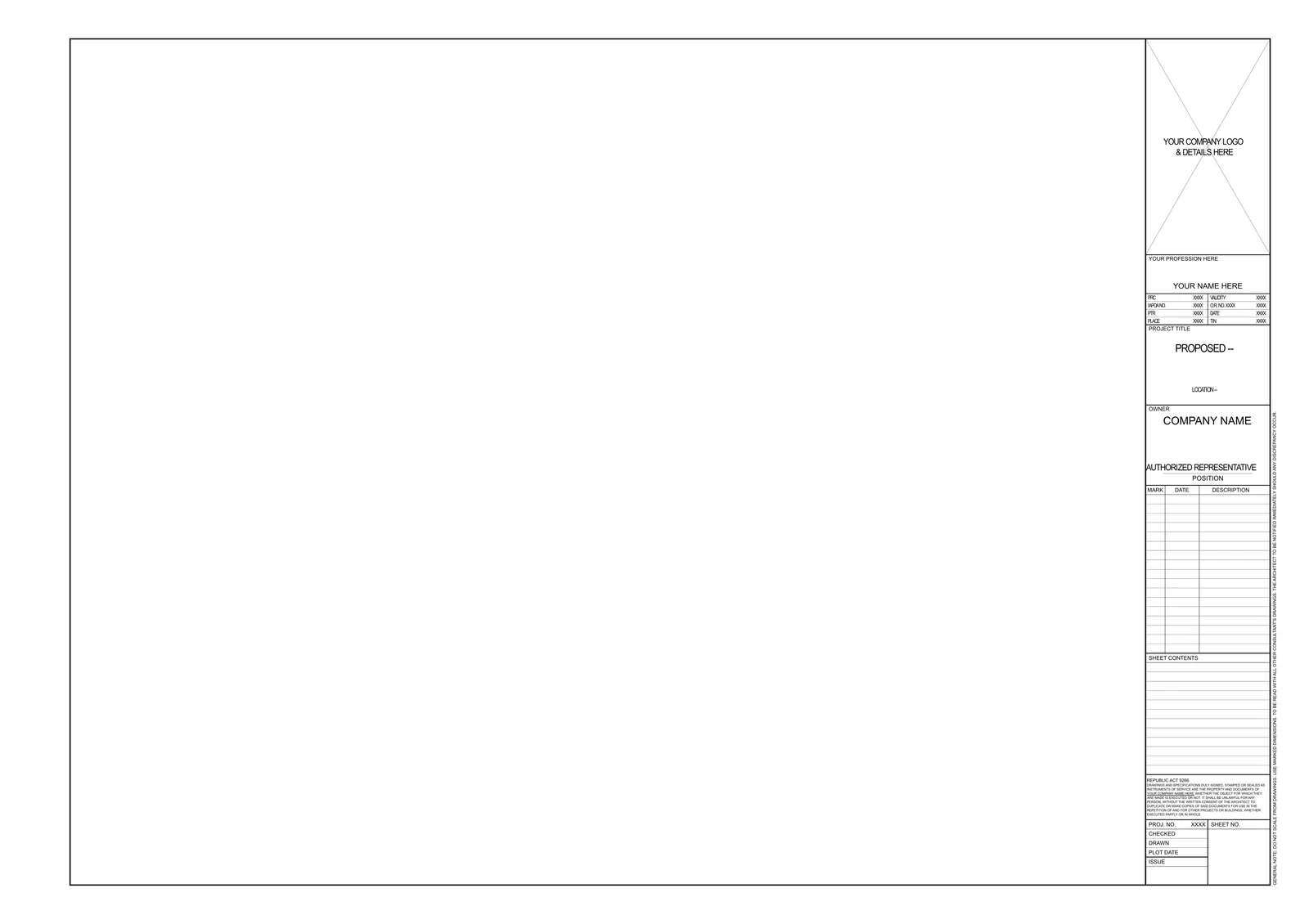

• Landscape, vertical title block
• Portrait

pEN ASSIGNMENT

• Color 1 (red) = 0.10, black
• Color 2 (yellow) = 0.20, black
• Color 3 (green) = 0.30, black
• Color 4 (cyan) = 0.40, black
• Color 5 (blue) = 0.50, black
• Color 6 (magenta) = 0.60, black
• Color 7 (white) = 0.80, black

BENEFITS

semi-automate repetitive tasks

Are you done with the plans and ready to present? Oh, there’s one more thing to do – putting them on paper, filling up the project details, and printing. Handle those nuances efficiently by setting up your drawing assets beforehand. You don’t have to waste your time looking for that specific paper size and title block from past projects to copy and paste from. Permanently store this drawing sheet file in your library and use it repeatedly across all projects moving forward. Just copy the original file from your library, paste it to the specific project folder, open it on CAD software, edit the details, and it’s good to go. Take advantage of your CAD software’s automatic sheet generation by creating a drawing template and making this file as an external reference (Xref). Read this post to learn how to create sheets on the Layout tab using a template automatically.
